JRC JFE-380 Echosounder is a device that features a compact-sized display unit (6.5" TFT LCD) and meets IMO standard MSC.74(69) Annex 4.

  • Compact sized display unit (6.5" TFT LCD)
  • No paper (Optional: External printer is available)
  • High accuracy and high reliability
  • Depth data for the last 24 hours in memory to playback the past sounding information
  • Meets IMO standard MSC.74(69) Annex 4
  • Display
    6.5" Color TFT LCD (640×480 pixels)
  • Frequency
    200kHz / 50kHz
  • Echo color
    8 colors or 8 level monochrome
  • Digital depth
    4 digit (0.1m)
  • Range
    10, 20, 50, 100, 200, 500, 800m
  • Depth accuracy
    ±2.5%
  • Minimum sounding depth
    200kHz : 1.0m, 50kHz : 2m
  • Draft adjust
    50m in 0.1m steps
  • TX pulse repetition rate
    171PRR (10, 20, 50m), 86PRR (100, 200m), 43PRR (500, 800m)
  • Presentation mode
    Standard, History, Docking
  • Time range of echo display
    5, 10, 20, 30min
  • Auto function
    Gain, Range
  • Alarm function
    Depth, Power fail, System error
  • Preview function
    24hour
  • Transducer
    200kHz : UT-200ND, 50kHz : UT-50MD
  • Power supply
    100-115/200-230VAC±15%, 50Hz/60Hz±5%, 24VDC (only use for power fail monitoring)
  • Power consumption
    Less than 20W
  • Waterproofing
    Display unit : IPX5 jet proof, Connection Box : IPX2 drip proof
  • JRC JFE-380 Echosounder - Brochure İndir

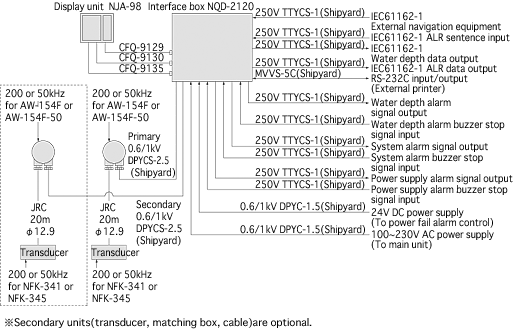

  • JRC JFE-380 Echosounder - Diagrams İndir

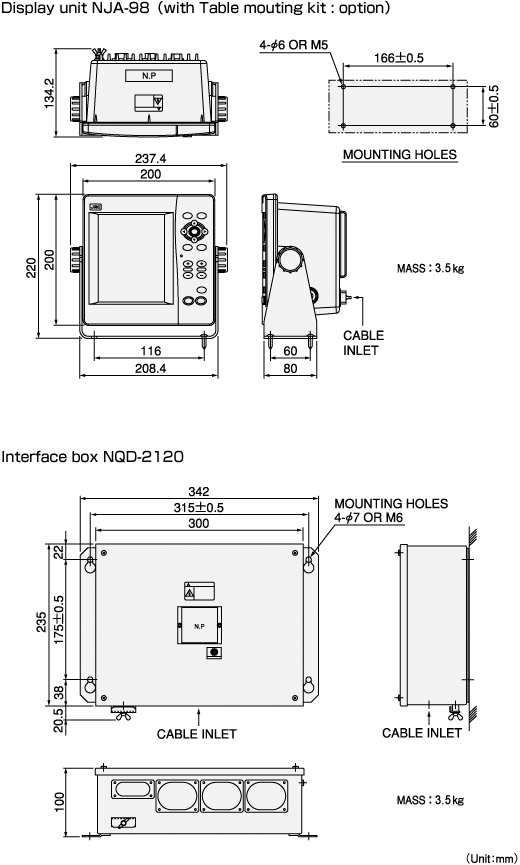

  • JRC JFE-380 Echosounder - Dimensions İndir
